SWARAJ
744FE 4WD

RUGGED . RELIABLE.

The new Swaraj 744 FE has modern style and new features, which are capable of overcoming every challenge of farming. It has more power and is ready for every application. It is both comfortable and strong.​

Download Brochure

Features

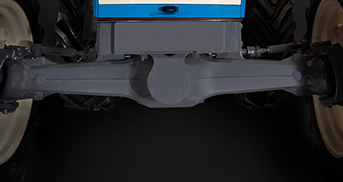

Strong Front AXLE

Strong Front Axkle let’s you drive through sturdy fields

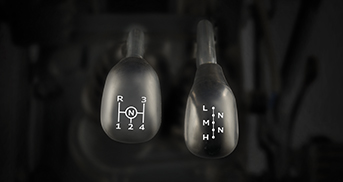

High Speed Application (4WD)

12 + 3 Gears give more options so that every work is done easily.

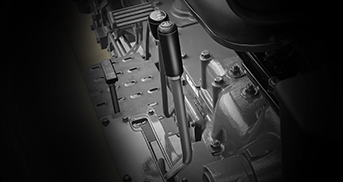

IPTO

IPTO clutch allows operator to easily engage and disengage PTO

Specifications

PTO and Hydraulics
  • Live Hydraulics:
  • A) Position control: To hold lower links at any desired height.
  • B) Automatic draft control :To maintain uniform depth
  • C) Mix Control : For optimum field output
  • 3 point linkage suitable for Category-I&II type implement pins
  • Hydraulics(kg) - 2000 kg at lower link ends
Brakes
  • Brakes - OIB
  • No Of Speeds - 8F +2R
  • Front Axle - Drop Down
  • Front Axle Bracket - Casted
  • Steering - Power
Electricals
  • Battery (Ah) - 88
  • PTO - 540 r/min with Multispeed Forward & Reverse PTO
  • Hydraulics - 20000 kg
  • DCV - Single acting & Double port
Tyre Size
  • Front Tyre - 203.82 mm x 407.20 mm (8.00 x 18)
  •                    190.50 mm x 406.40 mm (7.50 x 16)
  • Rear Tyre - 345.44 mm x 711.20 mm (13.6 x 28)
  •                    478.46 mm x 711.20 mm (14.9 x 28)
  • Length - 3545 mm
  • Width - 1810 mm
  • Height - 2270 mm
  • Wheel Base - 2135 mm
  • Min. Ground Clearance - 345 mm
  • Weight of tractor - 2368 kg
  • Wheel track front - 1355 mm
  • Wheel track rear - 1420 mm
  • Diesel Tank Capacity - 62 litre
