SWARAJ
969 FE

RELIABLE. POWERFUL

The new Swaraj 969 FE is 66-70 HP category tractor. It is full of brilliant features to fulfill the needs of every farmer. 969 FE, a tractor that can overcome any obstacle, is built on the pillars of power, trust and reliability. The engineers at Swaraj have a keen understanding of farmers’ needs because most of them are farmers themselves. It is this very expertise of theirs that makes the Swaraj 969 FE stand apart from the rest.

Features

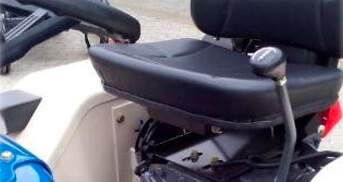

EASY GEAR SHIFTING

More Operator comfort

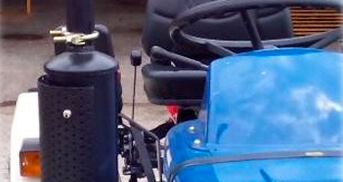

ADJUSTABLE SILENCER

Without faling in branches easy access in orchards

Specifications

Engine
  • Power: 49.2 kW - 52.1 kW (66-70 HP)
  • Type: 4 Stroke, Direct injection, Turbocharged Diesel engine
  • No. of Cylinders: 3
  • Bore and Stroke: 110 mm x 122 mm
  • Displacement: 3478 cm3
  • Rated Engine Speed: 2000 r/min.
  • Air Cleaner: Dry type
  • Cooling System: Water Cooled with no-loss tank
Clutch
  • Mechanically actuated double clutch (independent PTO) with cerametallic friction lining Bigger 12 clutch
Gear Speeds
  • Forward: 0.88 to 32.25 km/h (standard)
  • Reverse: 2.0 & 24.86 km/h (standard)
  • No. of Gears: 12 Forward, 3 Reverse speeds
PTO
  • PTO speed: 540, 540E, Multispeed 8 Forward & 2 Reverse PTO
BRAKES
  • Brake type: Oil-Immersed multi disc brakes
STEERING
  • Steering type: Power steering
HYDRAULICS
  • Live Hydraulics
  • Lifting Capacity: 2200 kg at lower link ends
  • Linkage Category: 2 with fixed type lower links
TYRE TYPE
  • Option 1: 2WD
  • Front Tyre - 190.50 mm ×406.40 mm (7.50 x 16)
  • Rear Tyre - 429.26 mm x 726 mm (16.9 x 30)
  • Option 2: 4WD
  • Front Tyre - 284.48 mm x 609.06 (11.2 x 24)
  • Rear Tyre - 429.26 mm x 726 mm (16.9 x 30)
ELECTRICALS
  • 12 Volt, 100 Battery starter motor & alternator
  • Instruments: Digital instrument cluster
DIMENSIONS
  • Option 1: 2WD
  • O.A. Length: 3740 mm (with lower link horizontal position)
  • O.A. Width: 1925 mm
  • O.A. Height: 2280 mm
  • Wheel Base: 2210 mm
  • Min. ground Clearance: 407 mm
  • Weight of Tractor: 2850 kg
  • Wheel track Front: 1415 mm
  • Wheel track Back: 1485 mm
  • Option 2: 4WD
  • O.A. Length: 4020 mm (with lower link horizontal position)
  • O.A. Width: 1950 mm
  • O.A. Height: 2280 mm
  • Wheel Base: 2245 mm
  • Min. ground Clearance: 407 mm
  • Weight of Tractor: 3280 kg
  • Wheel track Front: 1630 mm
  • Wheel track Back: 1530 mm
REAR AXLE
  • Planetary reduction for longer life and low maintenance
