SWARAJ
744FE

RELIABLE. VERSATILE.

The Swaraj 744 FE is equipped with modern design and cutting-edge features, making it well-prepared to tackle various agricultural tasks.
With increased power and versatility, it is suitable for a wide range of applications, all while offering comfort and robustness.
In essence, Swaraj outdoes itself with this model, showcasing its superior capabilities

Download Brochure

Features

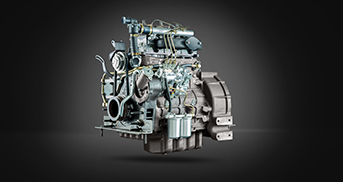

Powerful Engine

Powerful engine that gives better torque & let’s your tractor carry the heaviest of implements

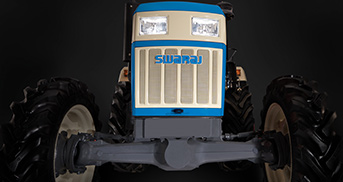

Strong Front AXLE

Strong Front Axkle let’s you drive through sturdy fields

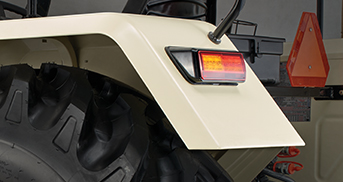

LED Fender & Tail Lamp

New Swaraj 744 FE has better LED & stronger fender for clear visibility

Specifications

Engine
  • Rated Engine Speed ​​(r/min) - 2000
  • Displacement (cm3) – 3307
  • Bore (mm) - 110
  • Stroke (mm) - 116
  • Service Interval(h) - 400
Transmission
  • Gear box type - Sliding Mesh/PCM
  • Clutch type -
  • Standard Double clutch (Independent PTO)(4WD)
  • Standard Single Clutch (2WD)
  • Optional Dual Clutch/Double clutch (Independent PTO)
  • Front axle type - Adjustable/Fixed
  • Front axle drive - 2WD/4WD
  • Steering -
  • Standard Power steering(4WD)
  • Standard Mechanical Steering(2WD)
  • Optional Power Steering
  • Number of gears and shift pattern:
  • 8 Forward, 2 Reverse speeds with Centre Shift levers, Optional Side shift levers Optional 12 Forward, 3 Reverse speeds with Side shift levers
  • 2.79 TO 30.90
  • 3.32 TO 11.44
PTO and Hydraulics
  • P.T.O. - 540, with 4 multi-speed forward and 1 reverse speed(4WD)
  • Standard 540 r/min (2WD)
  • Optional 540, with 4 multi-speed forward and 1 reverse speed
  • Hydraulics(kg) - 2000
Brake
  • Type : Oil immersed brakes
Tyre Size
  • Front Tyre 2WD - 152.40 mm x 406.40 mm (6.00 × 16)
  • 190.50 mm x 406.40 mm (7.50 x16)
  • Rear Tyre 2WD - 345.44 mm x 711.20 mm (13.6 x 28)
  • 378.34 mm x 711.20 mm (14.9 x 28)​
  • Front Tyre 4WD - 203.82 mm x 457.20 mm (8.00 x 18)
  • 190.50mm x 406.40mm (7.50 x 16)​
Electrical
  • Battery (Ah) - 88
  • Head lamps types - Glass / Clear Lens
  • Fender & Tail Lamps Variants - Regular / LED*
Dimensions and Capacity
  • 2WD
  • Length - 3455 mm
  • Width - 1830 mm
  • Height - 2250 mm
  • Wheel Base - 2095 mm
  • Min. Ground Clearance - 435 mm
  • Weight of tractor - 2060 kg
  • Wheel track front - 1350 mm
  • Wheel track rear - 1420 mm
  • Diesel Tank Capacity - 62 litre
  • 4WD
  • Length - 3545 mm
  • Width - 1810 mm
  • Height - 2250 mm
  • Wheel Base - 2135 mm
  • Min. Ground Clearance - 435 mm
  • Weight of tractor - 2060 kg
  • Wheel track front - 1350 mm
  • Wheel track rear - 1420 mm
  • Diesel Tank Capacity - 62 litre
