SWARAJ
742 XT

RELIABLE. VERSATILE. XTRA TORQUE.

The new Swaraj 742 XT is, a fusion of contemporary style and advanced features in a tractor.
With its impressive power, this high-performance vehicle is well-equipped to tackle a wide range of agricultural tasks.
Its design places a strong emphasis on providing the farmer with optimal comfort.

Download Brochure

Features

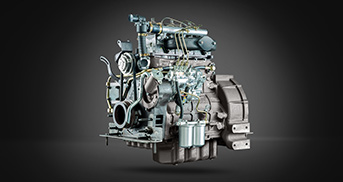

POWERFUL ENGINE

Powerful engine that gives better torque & let’s your tractor carry the heaviest of implements

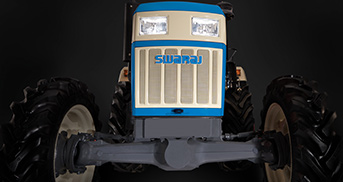

STRONG FRONT AXLE

Strong Front Axle let’s you drive through sturdy fields

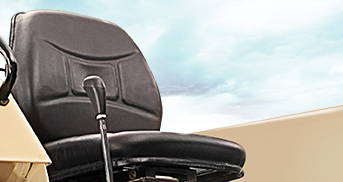

COMFORTABLE DRIVE

Experience a comnfortable drive while farming

Specifications

Engine

Rated Engine Speed (r/min) - 2000
Displacement (cm3) – 3307
Bore (mm) - 110
Stroke (mm) - 116
Service Interval(h) - 400

Transmission

Gear box type - Sliding Mesh/PCM
Clutch type -
Standard Single Clutch
Optional Dual Clutch/Double clutch (Independent PTO)
Front axle type - Adjustable/Fixed
Front axle drive - 2WD
Steering -
Standard Mechanical Steering
Optional Power Steering
Gear box type :
8 Forward, 2 Reverse speeds with Centre Shift levers, Optional Side shift levers
3.00 to 30.92
3.76 to 12.91

PTO and Hydraulics

P.T.O. - 540, with 4 multispeed forward and 1 reverse speed
Hydraulics(kg) - 1700

Brake

Type : Oil immersed brakes

Tyre Size

Front Tyre 2WD - 152.40 mm x 406.40 mm (6.00 x 16 in)
Rear Tyre 2WD - 345.44 mm x 711.20 mm (13.6 x 28 in)
378.46 mm x 711.20 mm (14.9 x 28 in)

Electrical

Battery (Ah) - 80
Head lamps types - Glass
Fender & Tail Lamps Variants - Regular

Dimensions and Capacity

Length - 3455 mm
Width - 1915 mm
Height - 2235 mm
Wheel Base - 2085 mm
Min. Ground Clearance - 440 mm
Weight of tractor - 2053 kg
Wheel track front - 1320 mm
Wheel track rear - 1490 mm
Diesel Tank Capacity - 56 litre

SWARAJ742 XT
