SWARAJ
735 XT

RELIABLE. VERSATILE. XTRA POWER

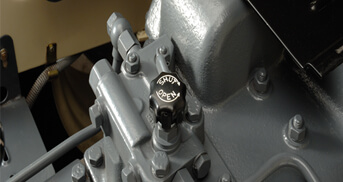

The Swaraj 735 XT, now comes with powerful engine of 3307 cm3 (cc) thus pushing the productivity further for the farmers. Its high-torque engine ensures strong pulling power, while the side-gear mechanism with PCM and dual clutch reduce operator fatigue. With 1500 kg lift capacity, oil-immersed brakes, bigger clutch size, isolating valve and Power Steering, it excels in both agri and non-agri tasks

Features

Specifications

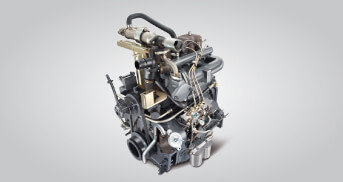

Engine
  • Model RV-3 XM+ 3A
  • Power: 26.09 – 29.82 kW (35-40 HP)
  • Type 4 Stroke, Direct injection, Diesel engine.
  • No. of Cylinders 3
  • Bore and Stroke 100 X 116 mm
  • Displacement 2734 cm3
  • Rated Engine Speed 1800 r/min.
  • Air Cleaner 3- Stage Oil Bath Type
  • Cooling System Water Cooled with No loss tank.
Clutch
  • Clutch Standard Single dry disc friction plate - 280 mm dia. (11)
  • Single dry disc friction plate – 305mm dia 12

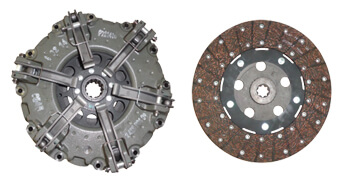

  • Clutch Optional Dual Clutch
Gear Speeds
  • No. of Gears 8 Forward, 2 Reverse speeds
  • Forward 2.20 to 28.50
  • Reverse 2.70 & 10.50
PTO
  • PTO Speed: Optional 540 r/min
  • PTO Speed: Optional NA
Brakes
  • Brake Type Standard Oil Immersed Brakes
  • Brake Type Optional NA
Steering
  • Standard Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator.
  • Optional Power steering
Hydraulics
  • Live Hydraulics "A) Position control: To hold lower links at any desired height. B) Automatic draft control :To maintain uniform depth c) Mix Control : For optimum field output
  • Lifting Capacity 1200 kg at lower link ends.

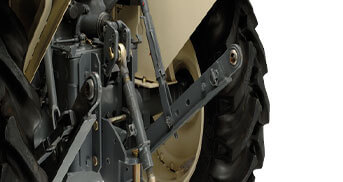

  • Linkage 3 point linkage suitable for Category-I&II type implement pins.
  • Sensi lift Hydraulics
Tyre Type
  • Front Tyre Standard 6.00 x 16
  • Rear Tyre Standard 13.6 x28
Electricals & Electronics
  • Electricals 12 V, 88 Ah. Battery Starter motor & Alternator
  • Instruments Engine r/min cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator.
Weights & Dimensions
  • O.A. Length 3385 mm
  • O.A. Width 1730 mm
  • O.A. Height 2285 mm
  • Wheel Base 1925 mm
  • Min. Ground Clearance 385 mm
  • Weight of Tractor 1930 kg
  • Wheel Track Front 1320 mm
  • Wheel Track Rear 1350 mm (with 13.6*28 tyre type)
