SWARAJ
717

RELIABLE. DURABLE. FUEL EFFICIENT.

Swaraj 717 is the latest value-for-money offering from Swaraj in the sub-20hp (14.91 kW) category. This best-in-class tractor redefines a farmer’s life. It offers solid performance in using implements like rotavator, cultivator, spraying, haulage, sowing, reaper, threshing and across multiple crops like grapes, groundnut, cotton, castor etc. It is easy to maintain and highly reliable to use.

Features

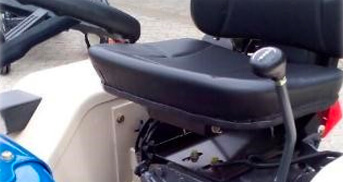

Easy Gear Shifting

More operator comfort

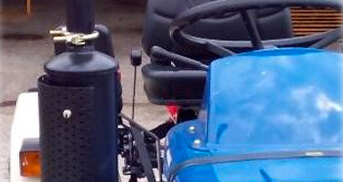

Adjustable Silencer

Easy access in orchards

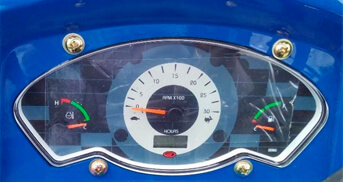

Digital Instrument Cluster

Better aesthetics & visibility

Specifications

Engine

Power: 11.18 kW (15 HP)
Type 4 stroke, direct injection, diesel engine
No. of Cylinders: 1
Rated Engine Speed 2300 r/min
Air Cleaner 3-stage oil bath type
Cooling System Water cooled

Clutch

Clutch (Standard) single-199.8mm diameter

Gear Speeds

No. of Gears 6 forward, 3 reverse speeds along with side shift mechanism
Forward 2.02 to 25.62 (km/h)
Reverse 1.92 and 5.45 (km/h)

PTO

PTO Speed: Standard 540 r/min @ 2053 engine r/min

Brakes

Brake type Dry disc brakes

Steering

Standard Mechanical Steering

Hydraulics

Live Hydraulics Live, ADDC Hydraulics a) position control to hold the lower links at any desired height b) automatic draft control to maintain the uniformity of the draft c) mix control for maximum capacity in the farm
Lifting Capacity 780kg
Linkage 3 point linkage category- for l type implement pins

Tyre Type

Front Tyre Standard 5.20 x 14
Rear Tyre Standard 8 x 18

Electricals & Electronics

Electricals 12 V, 50 Ah. Battery, starter motor and alternator
Instruments Engine r/min cum digital meter along with fuel gauge, water temp. Gauge and oil pressure indicator

Weights & Dimensions

O.A. Length 2435 mm
O.A. Width 1210 mm
O.A. Height 840 mm
Wheel Base 1490 mm
Min. Ground Clearance 260 mm
Weight of Tractor 850 kg
Wheel Track Front 940 (sta.) – 1040 mm
Wheel Track Rear 1000 (sta.) – 1120 mm
