SWARAJ
963 FE

RUGGED . RELIABLE.

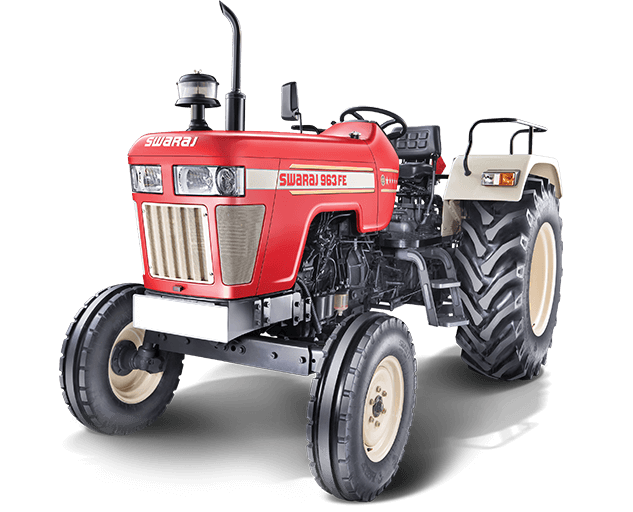

The new Swaraj 963 FE is 44.74-48.47 kW (60-65 HP) category tractor. It is full of brilliant features to fulfill the needs of every farmer. 963 FE, a tractor that can overcome any obstacle, is built on the pillars of power, trust and reliability. The engineers at Swaraj have a keen understanding of farmers’ needs because most of them are farmers themselves. It is this very expertise of theirs that makes the Swaraj 963 FE stand apart from the rest.

Download Brochure

Features

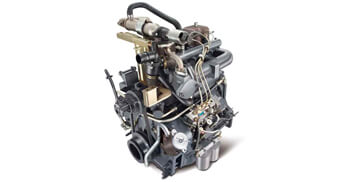

Engine

Powerful engine with 15% more torque makes navigation, has lowest rated RPM, giving the engine a longer life

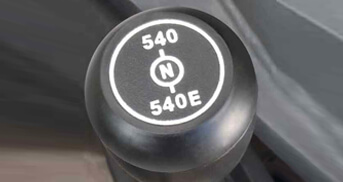

PTO

540 PTO, 540 Economy PTO,multi speed & Reverse PTO saves diesel for heavy implements, the independent PTO Clutch helps independent start/ stop of the PTO

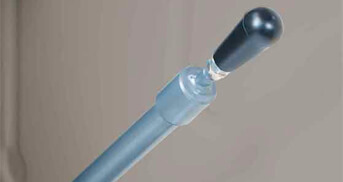

Easy Hitch Lever

With this, the farmer can easily join the implements to the lower links and top links by himself.

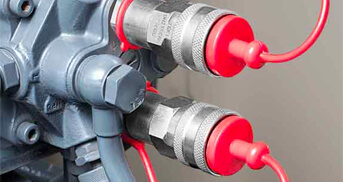

Direction Control Valve (DCV)

With the company fitted DCV Kit joining heavy implement such as the reversible MB plough, laser leveler and harvester is extremely easy.

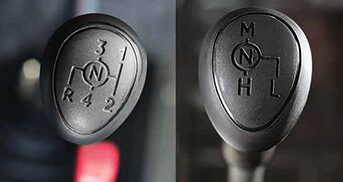

New transmission with high-medium-low synchromesh

This tractor has 12 Forward 2 Reverse gears which is highly efficient & covers more ground in less time

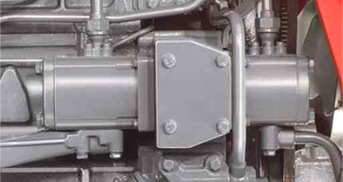

Hydraulic Pump

The Hydraulic pump is made by engineers who are farmers themselves, making it easy to move & control large equipment thus providing efficiency.

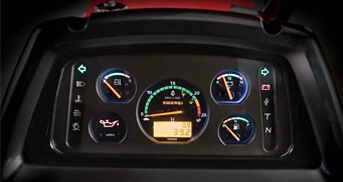

Instrument Cluster

The modern digital instrument cluster and combination switch gives the tractor a contemporary and stylish look.

Comfortable Seats



It’s big platform, comfortable seat & side shift gear ensujres that the driv er has a comfortable experience.

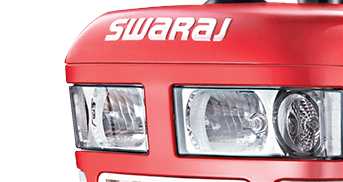

Multi Reflector Lights

The bright multi reflector lights make working even in low-light easy.

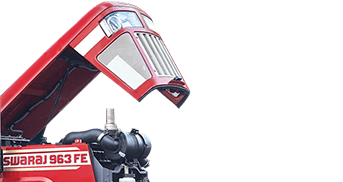

Single Piece Bonnet

It’s new single piece bonnet system allows convenient servicing

Specifications

Engine
  • Power: 44.74 - 48.47 kW (60-65 HP)
  • Type: 4 Stroke, Direct injection, Diesel engine
  • No. of Cylinders: 3
  • Bore and Stroke: 110 X 134 mm
  • Displacement: 3820 cm3
  • Rated Engine Speed: 2100 r/min.
  • Air Cleaner: Dry type
  • Cooling System: Water Cooled with no-loss tank
Clutch
  • Clutch: "Mechanically actuated double clutch (independent PTO) with cerametallic friction lining
  • Bigger 12 clutch
Gear Speeds
  • Forward km/h: 2.60 to 30.90
  • Reverse km/h: 3.30 to 12.90
  • No. of Gears: 12 Forward, 2 Reverse speeds
PTO
  • PTO speed: 540, 540E, 8 Multispeed Forward & 2 Reverse PTO r/min
Brakes
  • Brake type: Oil-Immersed type disc brakes
Steering
  • Steering type: Power steering
Hydraulics
  • Hydraulics: "Live Hydraulics
  • Lifting Capacity: 2200 kg at lower link ends
  • Linkage Category:2 with fixed type lower links
Tyre Type
  • Bigger front tyres – 241.30 mm x 508 mm (9.50 x 24)
  • Rear Tyre - 429.26 mm x 711.20 mm (16.9 x 28)
Electricals & Electronics
  • Electricals: 12 V, 100 Battery starter motor & alternator
  • Instruments: Digital instrument cluster
Weights & Dimensions
  • 2WD
  • O.A Length (with lower link horizontal position) - 3715 mm
  • O.A Width - 1920 mm
  • O.A Height - 2270 mm
  • Wheel Base - 2215 mm
  • Min. Ground Clearance - 407 mm
  • Weight of tractor - 2700 kg
  • Wheel track front - 1445 mm
  • Wheel track rear - 1470 mm
  • 4WD
  • O.A Length (with lower link horizontal position) - 3980 mm
  • O.A Width - 1915 mm
  • O.A Height - 2180 mm
  • Wheel Base - 2240 mm
  • Min. Ground Clearance - 340 mm
  • Weight of tractor - 3080 kg
  • Wheel track front - 1570 mm
  • Wheel track rear - 1480 mm
Rear Axle
  • Planetary reduction for longer life and low maintenance
