SWARAJ
960 FE

RUGGED . RELIABLE.

The Swaraj 960 FE conquers every land, transforming it into a flourishing field of crops. While being rugged, it even has features that make it more stable. With a reliable tractor like Swaraj FE working alongside, you can take your growth story ahead.

Download Brochure

Features

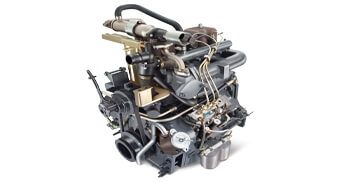

Powermax

Excellent cooling efficiency radiator, highest CC in it’s category, 220 Nm torque provides excellent pulling capacity and 2000 rated r/min engine.

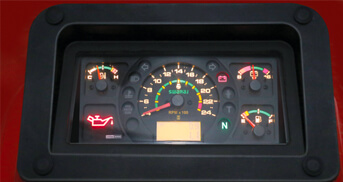

Digital Instrument Cluster

New age styling for better visibility during nights

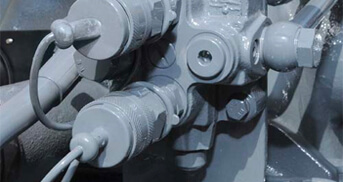

Direction Control Valve (DCV)

Ease of operation for operating external hydraulic implements like reversible MB plough, Dozer etc.

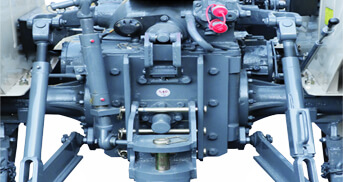

Heavy Duty Senslift Hydraulics

2000 Kg capacity sensilift for excellent performance on revercible MB plough, potato planter & heavy duty cultivator

Easy Hitch

Single person can hitch the implement without even getting on the tractor

Multi Speed Forward & Reverse PTO

Provides high r/min on PTO even on low engine r/min, hence saves fuel on applications like alternator, thresher & genset. Hence more fuel savings.

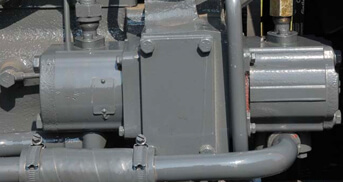

Power Steering

Ease of turning – operator comfort

Specifications

Engine
  • Model: RB-33 XP
  • Power: 41.01 – 44.74 kW (55-60 HP)
  • Type: 4 - Stroke, Direct Injection, Diesel Engine with EGR
  • No. of Cylinders: 3
  • Bore and Stroke: 110 X 122 mm
  • Displacement: 3480 Cm3
  • Rated Engine Speed: 2000 r/min
  • Air Cleaner: 3- Stage Oil Bath Type
  • Cooling System: Water Cooled with No loss tank. Oil Cooler for engine oil
Clutch
  • Clutch Dual Clutch - 305 mm dia
  • Optional Single -305 mm dia
Gear Speeds
  • No. of Gears: 8 Forward, 2 Reverse speeds with side shift mechanism Forward: 2.7 to 33.5 Reverse: 3.3 & 12.9
PTO
  • PTO Speed: Standard 540 r/min, Multispeed forward & reverse PTO Speed
Brakes
  • Brake Type Standard: Oil Immersed Brakes
  • Brake Type Optional: NA
Steering
  • Standard: Independent Power Steering
  • Optional: NA
Hydraulics
  • Live Hydraulics: "Sensilift hydraulic system having automatic position & draft with mix control which helps in precision farming like Potato Planting etc. A) Position control: To hold lower links at any desired height. B) Automatic draft control: To maintain uniform depth in different soil. C) Mix Control: For optimum field output in variable soil condition. D) Toggle switch - To maintain the same implement level in field during seed drill and sowing operations.
Tyre Type
  • Front Tyre Standard: 7.50 x 16
  • Rear Tyre Standard: 16.9 x28
Electricals & Electronics
  • Electricals: 12 V, 99 Ah. Battery Starter motor & Alternator
  • Instruments: Digital Cluster
Weights & Dimensions
  • O.A. Length: 3590 mm
  • O.A. Width: 1940 mm
  • O.A. Height: 2340 mm
  • Wheel Base: 2200 mm
  • Min. Ground Clearance: 410 mm
  • Weight of Tractor: 2330 kg
  • Wheel Track Front: 1400 mm
  • Wheel Track Rear: 1480 mm (with 16.9 x 28 tyre)
