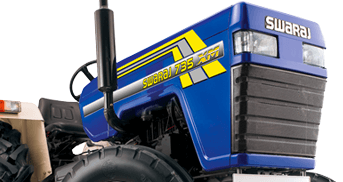

SWARAJ
735 XM

RUGGED . RELIABLE. XTRA POWER

735 XM is the most preferred model in the farming community. A front-runner, this 26.09 – 29.82 kW (35-40hp) category tractor is powered by a powerful & fuel efficient water-cooled 3-cylinder engine. This tractor is highly suitable for agriculture usage like cultivator, rotavator, thresher etc. It comes equipped with host of features like power steering, oil immersed brakes and bigger rear tyres that provide comfortable driving. Long life, low maintenance costs & better ergonomics of this tractor make it amongst the most sought after tractor by the farming community.

Download Brochure

Features

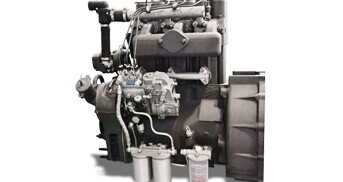

Engine

Fuel efficient water cooled 3 cylinders engine

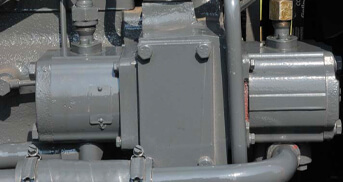

Power Steering

More stability on haulage – Comfortable driving

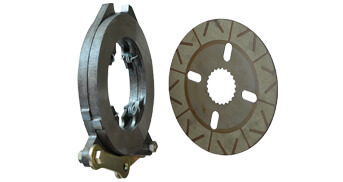

OIB

Better braking efficiency – Less maintenance – Longer life

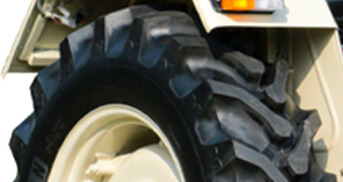

Bigger 13.6 X 28 Rear Tyre

Better gripping – Less slippage during field operation

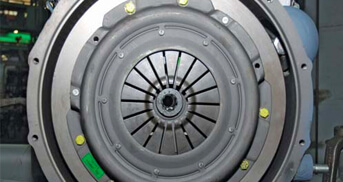

Diaphragm Type Single Clutch (Dia-280mm)

More contact area- better life, hence less maintenance

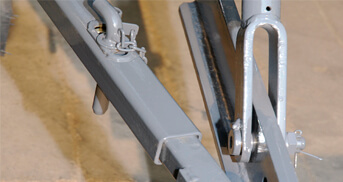

Stablizer Bar

Control sway of heavy implements like Rotavator

Better Ergonomics

Easy Maintenance

Specifications

Engine
  • Model RV-3 XM+ 3A
  • Power: 26.09 – 29.82 kW (35-40 HP)
  • Type 4 Stroke, Direct injection, Diesel engine.
  • No. of Cylinders 3
  • Bore and Stroke 100 X 116 mm
  • Displacement 2734 cm3
  • Rated Engine Speed 1800 r/min.
  • Air Cleaner 3- Stage Oil Bath Type
  • Cooling System Water Cooled with No loss tank.
Clutch
  • Clutch Standard Single dry disc friction plate - 280mm dia. (11)
  • Clutch Optional Dual Clutch
Gear Speeds
  • No. of Gears 8 Forward, 2 Reverse speeds
  • Forward 2.30 to 27.80
  • Reverse 2.73 & 10.74
PTO
  • PTO Speed: Standard 1000 r/min
  • PTO Speed: Optional 540 r/min
Brakes
  • Brake type: Stanrad Dry Disc type Brakes
  • Brake type: Optional Oil Immersed Brakes
Steering
  • Standard Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator.
  • Optional Power steering
Hydraulics
  • Live Hydraulics "A) Position control: To hold lower links at any desired height. B) Automatic draft control :To maintain uniform depth c) Mix Control : For optimum field output
  • Lifting Capacity 1000 kg at lower link ends.
  • Linkage 3 point linkage suitable for Category-I&II type implement pins.
Tyre Type
  • Front Tyre Standard 6.00 x 16
  • Rear Tyre Standard 12.4 x28
  • Front Tyre /Rear Tyre Optional 6.00 x 16 /13.6 x28
Electricals & Electronics
  • Electricals 12 V, 88 Ah. Battery Starter motor & Alternator
  • Instruments Engine r/min cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator.
Weights & Dimensions
  • O.A. Length 3470 mm
  • O.A. Width 1695 mm
  • O.A. Height 2255 mm
  • Wheel Base 1950 mm
  • Min. Ground Clearance 395 mm
  • Weight of Tractor 1895 kg
  • Wheel Track Front 1330 mm
  • Wheel Track Rear 1350 mm (with 12.4*28 tyre type)
